Belt Drive Propeller Fans

NIS-CO ELECTRIC PERFORMANCE TABLE MODELS PT & PTS BELT DRIVE PROPELLER FANS

BLADE DIA. MOTOR HP RPM SONES @ 5 FT. CFM @ STATIC PRESSURE/BHP SHIP WT.
0.00 SP 1/20 SP (0.050) 1/10 SP (0.100) 1/8 SP (0.125) 1/4 SP (0.250) 3/8 SP (0.375) 1/2 SP (0.500)
1/4 625 11.4 5,300 / 0.30 5,000 / 0.31 4,650 / 0.32 4,450 / 0.33 2,600 / 0.33 - - 125
1/3 680 13.9 5,800 / 0.39 5,500 / 0.40 5,200 / 0.41 5,050 / 0.42 3,250 / 0.42 - - 130
24 1/2 720 15.5 6,550 / 0.56 6,300 / 0.57 6,050 / 0.58 5,900 / 0.59 5,000 / 0.62 3,200 / 0.62 - 130
3/4 870 23.0 7,400 / 0.81 7,200 / 0.83 6, 950 / 0.84 6,850 / 0.85 6,200 / 0.89 4,800 / 0.89 3,500 / 0.92 135
1 960 27.0 8,200 / 1.09 8,000 / 1.11 7,800 / 1.12 7,700 / 1.13 7,100 / 1.17 6,350 / 1.21 4,600 / 1.18 140
1-1/2 1080 32.0 9,200 / 1.55 9,050 / 1.56 8,850 / 1.58 8,750 / 1.59 8,300 / 1.64 7,700 / 1.69 6,900 / 1.73 150
1/4 460 10.2 7,400 / 0.33 6,700 / 0.33 5,900 / 0.33 5,200 / 0.33 - - - 150
1/3 493 11.6 7,900 / 0.41 7,300 / 0.41 6,600 / 0.41 6,100 / 0.41 - - - 155
30 1/2 565 15.1 9,000 / 0.62 8,500 / 0.61 7,900 / 0.61 7,600 / 0.62 4,700 / 0.61 - - 155
3/4 635 18.9 10,200 / 0.88 9,700 / 0.88 9,200 / 0.87 8,900 / 0.87 7,000 / 0.88 4,300 / 0.87 - 160
1 700 22.0 11,200 / 1.18 10,800 / 1.17 10,400 / 1.17 10,000 / 1.16 8,700 / 1.18 6,000 / 1.16 4,200 / 1.22 165
1-1/2 795 29.0 12,700 / 1.74 12,300 / 1.73 12,000 / 1.72 11,800 / 1.71 10,700 / 1.72 9,000 / 1.73 6,500 / 1.70 175
1/3 400 11.4 10,100 / 0.42 9,100 / 0.42 7,900 / 0.43 7,100 / 0.43 - - - 180
1/2 457 14.4 11,600 / 0.63 10,700 / 0.63 9,700 / 0.64 9,200 / 0.64 5,000 / 0.65 - - 180
36 3/4 505 17.6 12,800 / 0.85 12,000 / 0.85 11,200 / 0.86 10,700 / 0.86 7,000 / 0.86 - - 185
1 560 22.0 14,200 / 1.16 13,400 / 1.16 12,600 / 1.16 12,300 / 1.17 9,700 / 1.17 6,000 / 1.19 - 190
1-1/2 633 26.0 16,100 / 1.67 15,500 / 1.67 14,900 / 1.67 14,400 / 1.25 12,500 / 1.69 9,300 / 1.68 6,400 / 1.74 200
1/3 335 11.1 12,200 / 0.41 10,800 / 0.41 8,900 / 0.42 7,500 / 0.43 - - - 195
1/2 378 14.1 13,800 / 0.59 12,500 / 0.59 11,00 / 0.61 10,100 / 0.61 - - - 195
42 3/4 425 17.9 15,500 / 0.83 14,300 / 0.83 13,100 / 0.84 12,400 / 0.87 7,500 / 0.90 - - 200
1 475 22.0 17,300 / 1.17 16,300 / 1.18 15,200 / 1.19 14,700 / 1.20 10,800 / 1.23 6,100 / 1.31 - 205
1-1/2 530 26.0 19,300 / 1.62 18,400 / 1.62 17,500 / 1.63 17,000 / 1.64 14,200 / 1.69 9,800 / 1.72 - 215
1/2 330 13.8 16,100 / 0.57 14,500 / 0.60 12,700 / 0.63 11,600 / 0.63 - - - 225
48 3/4 370 17.4 18,100 / 0.80 16,700 / 0.84 15,100 / 0.88 14,200 / 0.89 - - - 230
1 410 22.0 20,000 / 1.09 18,700 / 1.14 17,400 / 1.18 16,600 / 1.20 11,600 / 1.25 - - 235
1-1/2 460 26.0 22,500 / 1.54 21,300 / 1.59 20,100 / 1.63 19,500 / 1.66 15,900 / 1.71 10,300 / 1.80 - 245

BELT DRIVE PROPELLER FAN TABLE

PERFORMANCE RATINGS-The ratings shown are based on tests made in accordance with AMCA standard 210. Performance shown is for units without inlet or outlet ducts. BHP does not include drive losses.

PerformanceshownisforTypes PTandPTSwithoutducts. Loudness values in sones at a distance of five feet.

DIMENSIONS

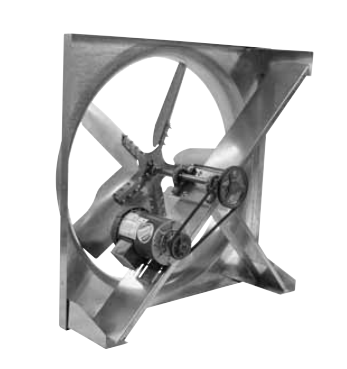

MODEL PT BELT DRIVE EXHAUST PROPELLER FAN / MODEL PTS BELT DRIVE SUPPLY PROPELLER FAN

FAN SIZE PANEL "A" SQ. B C D E F G METAL GAUGE AVG. SHIP WT.
PANEL1 BLADES2 SUPPORTS1
24 30 15 21 2 5 2-1/8 3 16 16 12 90#
30 36 15 21 1-1/2 5 2-1/8 3 16 16 12 110#
36 42 15 21 1-7/8 5 2-1/8 4-1/2 16 16 12 130#
42 48 15 21 3 5 1-7/8 4-1/2 14 16 12 145#
48 54 15 21 2-3/4 6 1-1/16 4-1/2 14 16 12 165#

BELT DRIVE PROPELLER FAN TABLE

NOTES:
  1. All steel construction with a baked on epoxyfinish.
  2. All G90 galvanized steel construction.
  3. This unitgood for 56 thru 145Tmotor frames only.

DIMENSIONS

ASSEMBLED WALL HOUSING

BELT DRIVE PROPELLER FAN TABLE

PROPELLER FAN4 SIZE HOUSING1 "A" SQ. B C D GAUGE2 AVG. WT. MOUNTING3 FLANGE FAN SIDE MOTOR SIDE GUARDS
24 30 26 2 8 18 52# 2X 2X3/16 STL 2X2MESH
30 36 26 2 8 18 60# 2X 2X3/16 STL 2X2MESH
36 42 26 2 8 18 69# 2X 2X3/16 STL 2X2MESH
42 48 26 2 8 18 77# 2X 2X3/16 STL 2X2MESH
48 54 26 2 8 18 85# 2X 2X3/16 STL 2X2MESH

BELT DRIVE PROPELLER FAN TABLE

NOTES:
  1. Dimensions shown do not include fastener heads. Allow 3/8 clearance or 3. Angle mounting flanges shipped loose and must be ordered separately. 3/4 overall to "A" dimension for wall openings. 4. Wall damper clearance collars must be used for all motorized dampers
  2. All parts are coated with a baked epoxy finish. and are recommended on automatic exhaust / supply applications.
NOTES:

1. All steel construction with a baked on epoxyfinish.
